Description
Features
On/Off auto trip bait feeding system
6+1RB bearing drive system for smoothness
Quick set anti-reverse roller bearing
Precision machine cut brass pinion gear
Corrosion resistant graphite body
Slow oscillation precision gearing system
Machined aluminum spool
Metal line clip
Spare aluminum spool
One touch handle with wood knob
LCS Line control spool
Technology
BAITFEEDING SYSTEM
Okuma’s baitfeeding system allows anglers to disengage their spinning reel spool and allow their bait to run freely. The baitfeeding system incorporates a secondary micro-adjustable drag system at the rear of the reel that allows for precise adjustment of the spool for bait control. In order to disengage this system simply turn the handle. The On/Off lever on the rear of the reel will automatically disengage the baitfeeding system so you can fight your fish with the main drag system.
QUICK-SET ANTI-REVERSE
Engage the reel in one direction for rock-solid hook sets.
BAITFEEDING SYSTEM
Allow anglers to disengage their spinning reel spool and allow their bait to run freely.
CYCLONIC FLOW ROTOR
Create “cyclonic” airflow, which significantly increases air around the rotor and allows for a much faster drying time if the reel becomes wet, minimizing corrosion possibilities throughout the reel.
SLOW OSCILLATION SYSTEM
Makes the line wind more straight and tight, reduce the friction when casting.
EXTRA SPOOL
A back-up system or for carrying different line sizes.
EVEN FLOW ROLLER SYSTEM
Reduce line twists by freely rolling over the line roller without friction.
ROTOR EQUALIZING SYSTEM
Precision balance and eliminates all spool wobble for perfect alignments and smooth cranking.
HYDRO BLOCK
Block water and foreign materials from entering system, ensure the drag washers always perform at optimal levels.
SPECIFICATION

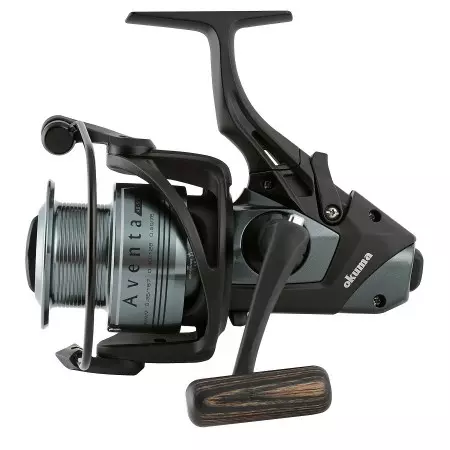

Model: AB-5000
Gear ratio: 4.8:1
Bearings: 6BB+1RB
Weight (g): 527
Line retrieve(cm): 68.6
Max drag force(kg): 12
Mono line capacity (mm): 0.35/235, 0.40/180, 0.50/110
Model: AB-6000
Gear ratio: 4.8:1
Bearings: 6BB+1RB
Weight (g): 533
Line retrieve(cm): 71.1
Max drag force(kg): 12
Mono line capacity (mm): 0.35//280, 0.40/215, 0.50/135
Model: AB-8000
Gear ratio: 4.8:1
Bearings: 6BB+1RB
Weight (g): 763
Line retrieve(cm): 78.7
Max drag force(kg): 15
Mono line capacity (mm): 0.35/405, 0.40/311, 0.50/190
Model: AB-10000
Gear ratio: 4.8:1
Bearings: 6BB+1RB
Weight (g): 778
Line retrieve(cm): 86.4
Max drag force(kg): 15
Mono line capacity (mm): 0.45/310, 0.50/250, 0.55/210
