Description
Features
Corrosion resistant graphite frame and sideplates

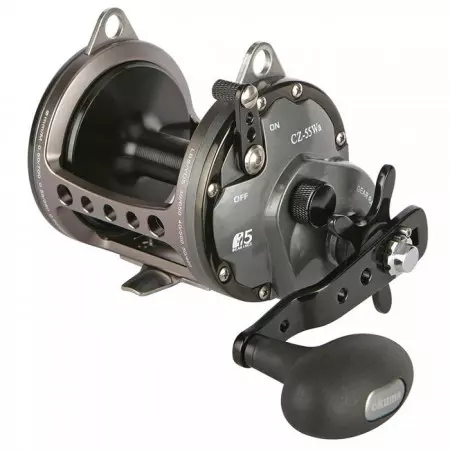

CZ-55W features aluminum frame and graphite sideplates
Machined aluminum, anodized spool
Multi-disc Carbonite drag system
Forged aluminum, anodized star
Anodized aluminum swept handle reduces wobble while cranking
4BB+1RB stainless steel bearings
MCS: External magnetic cast control system on 5CS, 10CS and 12CS sizes
Ergo grip handle knob
Dual anti-reverse system (mechanical & roller bearing)
XL Gearing: Drop down gear box
Quick-Set anti-reverse roller bearing
MSS: Mechanical Stabilizing System for increased durability
Self-lubricating gear system, all models
Technology
MECHANICAL STABILIZING SYSTEM
Strong, Stable, Smooth – Okuma’s Mechanical Stabilizing System is a support system that ties the spool shaft, pinion gear, pinion gear bearing, drive shaft and main gear together with a single support system allows all of these critical parts to stay in precise alignment. Designed specifically to hold up to the demands of braided and wire line fishing, the MSS support system stabilizes the spool shaft at 3 key stress points to eliminate flex under pressure – which directly translates into a reel that is more durable, stronger and smoother than the competition.
MAGNETIC CONTROL SYSTEM
Okuma’s Magnetic Control System is a fully-sealed, 100% waterproof cast control system that reduces backlash and improves casting distance by utilizing the magnetic field generated by the high RPM spinning of the spool during casting. The magnetic field is influenced by the adjustable cast control magnet which exerts an opposing force and allows for minute and accurate adjustments.
ERGO GRIP
The Ergo Grip handle knob is an extremely comfortable oversized handle-knob design for both speed and power. This soft-touch knob has been ergonomically designed to fit in the palm of your hand and will be found on certain Okuma lever drag reels, star drag reels and some spinning reel models.
SPECIFICATION
Model: CZ-5CSa
Gear ratio: 6.2:1
Bearings: 4BB+1RB
Weight (g): 396
Line retrieve(cm): 96.5
Max drag force (kg): 7
Monofilament line capacity, (diameter in mm.): 0.35/370, 0.40/275, 0.45/200
Model: CZ-10CSa
Gear ratio: 6.2:1
Bearings: 4BB+1RB
Weight (g): 499
Line retrieve(cm): 109.2
Max drag force (kg): 8
Monofilament line capacity, (diameter in mm.): 0.40/360, 0.45/270, 0.50/220

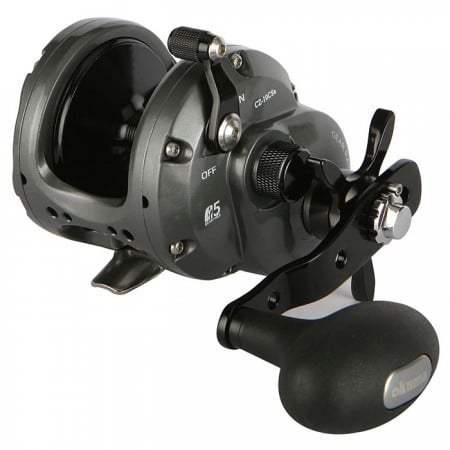

Model: CZ-12CSa
Gear ratio: 6.2:1
Bearings: 4BB+1RB
Weight (g): 522
Line retrieve(cm): 109.2
Max drag force (kg): 8
Monofilament line capacity, (diameter in mm.): 0.45/410, 0.50/340, 0.55/280
