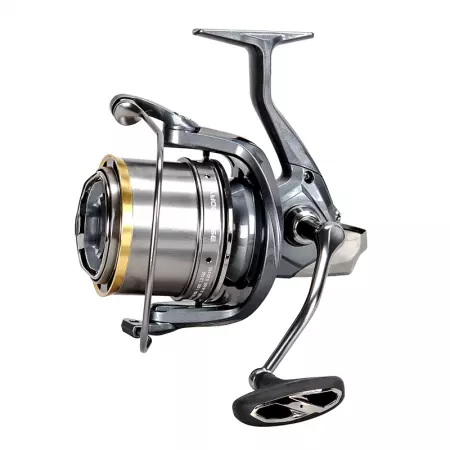

Description
Features
35mm stroke with super slow oscillation
Light weight C-40X carbon frame and sideplates
C-40X Cyclonic Flow Rotor for corrosion resistance
One-Piece Bail
Even Flow Roller System with DLC coating
Frictionless main Shaft design
Ultra-lightweight, A7075 aluminum shaft
Ultra light Screw in handle
Ultra light spool
Rotor with tangle guard – prevents line from entering the shaft
Rotor brake system
Carbon fiber drag system
Fast progressive drag
All HPB Bearing
Worm shaft transmission system
Extra 2 spool: 8000 aluminum spool and 3000 POM spool
9HPB+RB for ultimate smoothness
Technology
LIGHT WEIGHT C-40X CARBON FRAME, SIDEPLATES AND CFR ROTOR
ULTRA LIGHT AND MACHINED ALUMINUM SCREW IN HANDLE DESIGN
ONE-PIECE BAIL
The one-piece bail is a seamless design that reduces friction on the bail, allowing unobstructed line entry into the roller.
DIAMOND-LIKE CARBON (DLC): EVEN FLOW ROLLER SYSTEM WITH DLC COATING
The EFR II with DLC coating greatly reduces line friction and prevents fishing worn out in addition to frictionless free rolling on the line roller to reduce line twist.
CARBONITE DRAG SYSTEM
Okuma’s ALL NEW “Carbonite” drag system features a newly-developed carbon-based drag material which displaces heat and friction consistently and steadily even under the harshest of fishing conditions. Used in conjunction with a small amount of specially-formulated Okuma drag grease, the Carbonite drag system allows for a much wider and smoother drag range, all while maintaining exceptional performance and pure fish- stopping power.
FLITE DRIVE™
In the previous reels, when the main shaft moved up and down, a large area of friction was generated with the inner hole of the pinion, which caused you to feel resistance when turning. In order to reduce drag and achieve the lightness of rotation, we hollowed out the center of the pinion to reduce friction with shaft. To achieve the excellent lightness that maintains the original support strength and makes you feel the rotation.
GEARING STABILIZATION DESIGN
Provides excellent support on the top, middle and bottom of the pinion gear, making the gears extremely stable and durable.
ULTRA LIGHT SPOOL: 1500 SIZE ONLY 70G
ULTRA-LIGHTWEIGHT, A7075 ALUMINUM SHAFT
SPECIFICATION
MODEL: FLS35-1500AY
GEAR, RATIO: 4.3:1
BEARINGS: 9HPB+1RB
WEIGHT, (G): 472
LINE, RETRIEVE (CM): 103
MAX DRAG, FORCE (KG): 18
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.16/330, 0.18/260, 0.20/210
MODEL: FLS35-12000A
GEAR, RATIO: 4.3:1
BEARINGS: 9HPB+1RB
WEIGHT, (G): 520
LINE, RETRIEVE (CM): 103
MAX DRAG, FORCE (KG): 18
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.33/680, 0.35/600, 0.38/500
MODEL: 3000 spare spool
GEAR, RATIO: –
BEARINGS: –
WEIGHT, (G): –
LINE, RETRIEVE (CM): –
MAX DRAG, FORCE (KG): –
MONO LINE CAPACITY, (DIAMETER IN MM.): –
MODEL: 8000 spare spool
GEAR, RATIO: –
BEARINGS: –
WEIGHT, (G): –
LINE, RETRIEVE (CM): –
MAX DRAG, FORCE (KG): –
MONO LINE CAPACITY, (DIAMETER IN MM.): –
