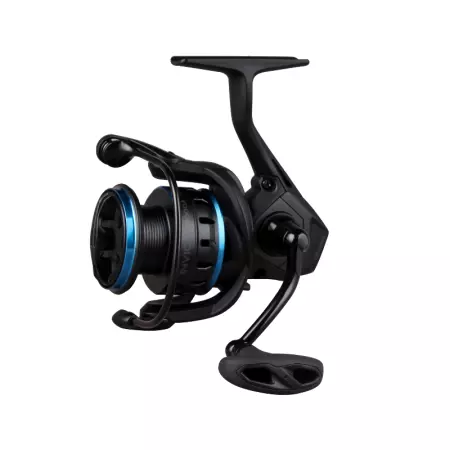

Description
Features
HDG+ main gear with machine cut brass pinion gear
EFR-II: Even Flow Roller system with DLC coating
Lightweight and machined aluminum screw in handle design
Gearing stabilization design
Flite Drive system increases gear stability and smoothness
Fast drag system
Double stainless steel line clips
One-piece bail wire
Precision machine cut brass pinion gear
Heavy duty, solid aluminum bail wire
Lightweight and machined aluminum spool
Multi-disc, Japanese oiled felt drag system
7+1 for ultimate smoothness
Quick-Set anti-reverse roller bearing
Spare Aluminum Shallow Spool
Technology
EVEN FLOW ROLLER SYSTEM
Reduce line twists by freely rolling over the line roller without friction.
QUICK-SET ANTI-REVERSE
Engage the reel in one direction for rock-solid hook sets.
HIGH DENSITY GEARING
HDGII:Corrosion-resistant, High density gearing
ROTOR EQUALIZING SYSTEM
Precision balance and eliminates all spool wobble for perfect alignments and smooth cranking.
EXTRA SPOOL
A back-up system or for carrying different line sizes.
SPECIFICATION
MODEL: IVF-3000A
GEAR, RATIO: 5.3:1
BEARINGS: 7BB+1RB
WEIGHT, (G): 236
LINE, RETRIEVE (CM): 78
MAX DRAG, FORCE (KG): 6
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.20/310, 0.25/200, 0.30/130
SPARE LINE CAPACITY, (DIAMETER IN MM.): PE0.6(0.128)-210m, PE0.8(0.148)-150m, PE1.0(0.165)-125m
MODEL: IVF-4000A
GEAR, RATIO: 5.2:1
BEARINGS: 7BB+1RB
WEIGHT, (G): 273
LINE, RETRIEVE (CM): 83
MAX DRAG, FORCE (KG): 9
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.25/280, 0.30/185, 0.35/130
SPARE LINE CAPACITY, (DIAMETER IN MM.): PE1.0(0.165)-170m, PE1.2(0.185)-150m, PE1.5(0.205)-110m
MODEL: IVF-C5000A
GEAR, RATIO: 5.2:1
BEARINGS: 7BB+1RB
WEIGHT, (G): 281
LINE, RETRIEVE (CM): 88
MAX DRAG, FORCE (KG): 9
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.30/240, 0.35/170, 0.40/125
SPARE LINE CAPACITY, (DIAMETER IN MM.): PE1.0(0.165)-300, m, PE1.5(0.205)-205, m, PE2.0(0.235)-150, m
