Description
Features
Corrosion-resistant graphite frame and sideplates
A6061-T6 machined aluminum, anodized U-shaped spool
Multi-disc composite drag system
5BB+1RB bearing drive system
External adjustable magnetic cast control system
Quick-Set anti-reverse roller bearing
Sideplate access port for quick spool changes
Ergonomic handle design allows cranking closer to body
Technology
MAGNETIC CONTROL SYSTEM
A fully-sealed, 100% waterproof cast control system that reduce backlash and improve casting distance.
SPOOL ACCESS PORT
Allow for quick spool changes and quick access for adjusting the Velocity Control System.
SPECIFICATION

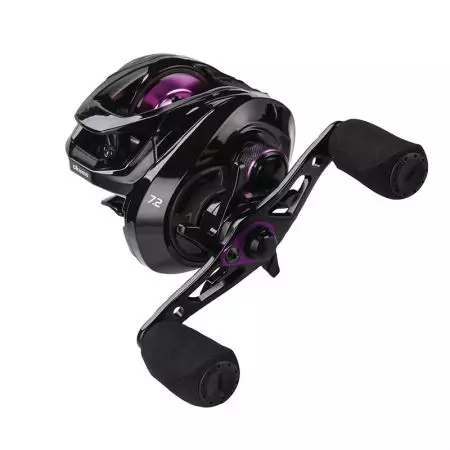

Right Handed Lowprofile Reel
Model: SP100-A
Gear ratio: 6.5:1
Bearings: 5+1
Weight (g): 199
Line retrieve (cm): 68
Max Drag Force (kg): 5
Monofilament line capacity, (diameter in mm.): 0.31/110, 0.33/100, 0.37/80
Model: SP100H-A
Gear ratio: 7.2:1
Bearings: 5+1
Weight (g): 199
Line retrieve (cm): 76
Max Drag Force (kg): 5
Monofilament line capacity, (diameter in mm.): 0.31/110, 0.33/100, 0.37/80
Left Handed Lowprofile Reel
Model: SP101-A
Gear ratio: 6.5:1
Bearings: 5+1
Weight (g): 199
Line retrieve (cm): 68
Max Drag Force (kg): 5
Monofilament line capacity, (diameter in mm.): 0.31/110, 0.33/100, 0.37/80
Model: SP101H-A
Gear ratio: 7.2:1
Bearings: 5+1
Weight (g): 199
Line retrieve (cm): 76
Max Drag Force (kg): 5
Monofilament line capacity, (diameter in mm.): 0.31/110, 0.33/100, 0.37/80
