Description
Features
Alumilitebody, sideplate, and Cyclonic Flow Rotor technology
IPX-7 full body waterproof design for ultimate protection
12HPB + 1RB corrosion resistant stainless-steel bearings
Carbonite high output DFD drag with Cal’s drag grease
Specialized titanium spool shaft for reduced flex and weight
Dual anti-reverse for maximum strength and reliability
Oversized C-6191 brass main gear and pinion gear
Even Flow Line Roller system with DLC coating
Rigid machined aluminum screw in handle design
Carbon fiber handle knob for comfort and weight reduction
Flite Drive™ pinion gear design reduces friction between the gear and shaft
GSS: Gearing Stabilization System on pinion gear offers unparalleled stability and durability
Machined aluminum screw in handle for maximum strength
Heavy duty aluminum bail wire
CRC: Corrosion Resistant Coating process
Rotor brake system works in conjunction with manual bail trip on 8000 size up
Auto bail trip on 4000 to 6000 size
Light weight C40X rotor on 4000 size
Technology
ALUMILITE FRAME CONSTRUCTION – ALUMINUM BODY, SIDEPLATE AND CYCLONIC FLOW ROTOR
AlumiLite construction incorporates Okuma’s rigid aluminum body technology on spinning, trolling and fly reel designs. Aluminum frames are stronger and more rigid and can withstand more pressure and torque than traditional graphite frames. These lightweight, diecast aluminum frames provide more precise tolerances for precision gear alignment, maximum castability and ultimate durability.
HEAVY DUTY, ONE PIECE SOLID ALUMINUM BAIL WIRE
The one-piece bail is a seamless design that reduces friction on the bail, allowing unobstructed line entry into the roller.
DIAMOND-LIKE CARBON (DLC): EVEN FLOW ROLLER SYSTEM WITH DLC COATING
The EFR II with DLC coating greatly reduces line friction allowing the fishing line to run more smoothly over this smooth surface, prolonging the life of the fishing line and the prevention of line twist.
OVERSIZED TITANIUM SPOOL SHAFT REDUCES FLEX
OVERSIZED PRECISION MACHINE CUT ALLOY MAIN GEAR
Under the traditional high-strength HDGII, Okuma enlarged the main gear to provide better strength and higher gear ratio. Taking the 10000-size as an example, the Tesoro spinning main gear is larger than conventional by 12%.
FULL WATERPROOF BODY: 1 METER SUBMERSION FOR UP TO 30 MINS, IPX7 RATING
In order to deal with the harsh saltwater environment, Okuma engineers developed a full waterproof body, reaching an IPX7 rating (1 meter submersion for up to 30 minutes). Giving anglers peace of mind when in saltwater environments.
FLITE DRIVE™
In standard reels, when the main shaft is moved up and down, a large area of friction is generated with the inner hole of the pinion gear, which causes you to feel resistance when turning. To reduce drag and achieve the lightness of rotation, we hollowed out the center of the pinion gear to reduce friction with the shaft. This change helps create a zero inertia start up and an incredibly light feel when turning the handle.
GEARING STABILIZATION DESIGN
This design provides excellent support on the top, middle and bottom of the pinion gear, making the gears extremely stable and durable.
HIGH PERFORMANCE BALL BEARINGS
The balls used on the HPB’s are constructed from the same high-grade stainless-steel material as the bearing housing. These bearings were designed to be 10 times more resistant to saltwater than standard stainless-steel bearings.
CARBONITE HIGH OUTPUT DUAL FORCE DRAG (DFD) SYSTEM
DFD incorporates both surfaces of the spool to maximize high-end drag pressure, efficiency and overall smoothness. Mounted in the top of the spool and protected by the Hydro Block system is a multi-disc carbon drag system that works in conjunction with a secondary drag system that is mounted under the spool. Even pressure is applied to both surfaces of the spool for maximum stability and significantly Increased drag output compared to traditional single drag systems.
SPECIFICATION

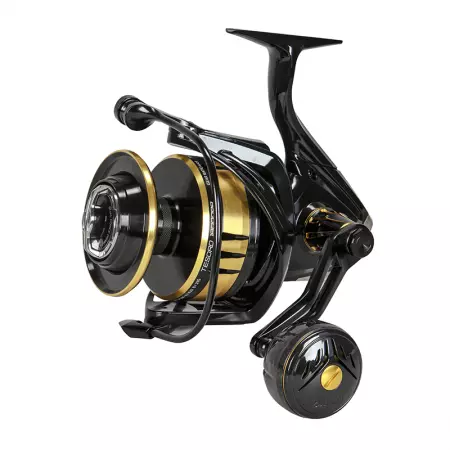

TESORO HIGH-SPEED SPINNING REELS
MODEL: TSR-4000XA
GEAR RATIO: 6.2:1
BEARINGS: 12+1
WEIGHT (G): 386
LINE RETRIEVE (CM): 101
MAX DRAG FORCE (KG): 12
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.25/280 0.30/185 0.35/130
MODEL: TSR-5000XA
GEAR RATIO: 6.2:1
BEARINGS: 12+1
WEIGHT (G): 449
LINE RETRIEVE (CM): 105
MAX DRAG FORCE (KG): 15
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.30/240, 0.35/170, 0.40/125
MODEL: TSR-6000XA
GEAR RATIO: 6.2:1
BEARINGS: 12+1
WEIGHT (G): 450
LINE RETRIEVE (CM): 112
MAX DRAG FORCE (KG): 15
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.30/310 0.35/220 0.40/160
MODEL: TSR-8000HA
GEAR RATIO: 5.8:1
BEARINGS: 12+1
WEIGHT (G): 697
LINE RETRIEVE (CM): 112
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.40/230, 0.45/180, 0.50/140
MODEL: TSR-10000HA
GEAR RATIO: 5.8:1
BEARINGS: 12+1
WEIGHT (G): 714
LINE RETRIEVE (CM): 121
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.40/290, 0.45/220, 0.50/175
MODEL: TSR-14000HA
GEAR RATIO: 5.8:1
BEARINGS: 12+1
WEIGHT (G): 714
LINE RETRIEVE (CM): 126
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.40/370, 0.45/290, 0.50/230
TESORO LOW-SPEED SPINNING REELS
MODEL: TSR-4000PA
GEAR RATIO: 4.7:1
BEARINGS: 12+1
WEIGHT (G): 386
LINE RETRIEVE (CM): 77
MAX DRAG FORCE (KG): 12
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.25/280 0.30/185 0.35/130
MODEL: TSR-5000PA
GEAR RATIO: 4.7:1
BEARINGS: 12+1
WEIGHT (G): 449
LINE RETRIEVE (CM): 80
MAX DRAG FORCE (KG): 15
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.30/240 0.35/170 0.40/125
MODEL: TSR-6000PA
GEAR RATIO: 4.7:1
BEARINGS: 12+1
WEIGHT (G): 450
LINE RETRIEVE (CM): 85
MAX DRAG FORCE (KG): 15
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.30/310 0.35/220 0.40/160
MODEL: TSR-8000PA
GEAR RATIO: 4.9:1
BEARINGS: 12+1
WEIGHT (G): 697
LINE RETRIEVE (CM): 93
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.40/230, 0.45/180, 0.50/140
MODEL: TSR-10000PA
GEAR RATIO: 4.9:1
BEARINGS: 12+1
WEIGHT (G): 714
LINE RETRIEVE (CM): 101
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.40/290, 0.45/220, 0.50/175
MODEL: TSR-14000PA
GEAR RATIO: 4.9:1
BEARINGS: 12+1
WEIGHT (G): 714
LINE RETRIEVE (CM): 105
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.40/370, 0.45/290, 0.50/230
MODEL: TSR-18000PA
GEAR RATIO: 4.4:1
BEARINGS: 12+1
WEIGHT (G): 928
LINE RETRIEVE (CM): 106
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.50/320, 0.55/260, 0.60/215
MODEL: TSR-20000PA
GEAR RATIO: 4.4:1
BEARINGS: 12+1
WEIGHT (G): 928
LINE RETRIEVE (CM): 111
MAX DRAG FORCE (KG): 25
MONO LINE CAPACITY, (DIAMETER IN MM.): 0.50/385, 0.60/260, 0.70/180
